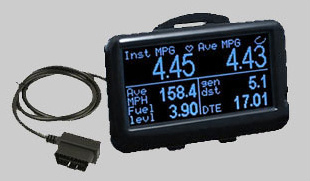

UltraGauge MX 1.4 - Toyota

Buying Options

Quantity Image Name Price
Custom Gauge Programming & Setup Custom Gauge Programming & Setup
In stock
Toyota Hilux 2.8lt 2015 - 2019 Toyota Hilux 2.8lt 2015 - 2019
In stock
Toyota Landcruiser 200 / 79 Series - Pre 2016 Toyota Landcruiser 200 / 79 Series - Pre 2016
In stock
Toyota Landcruiser 200 / 79 Series 2016 - 2020 Toyota Landcruiser 200 / 79 Series 2016 - 2020
In stock
Toyota Prado 150 Series 5sp Diesel Toyota Prado 150 Series 5sp Diesel
In stock
Toyota Prado 2.8lt 2015 Onwards (Not MY21 Releases) Toyota Prado 2.8lt 2015 Onwards (Not MY21 Releases)
In stock
UltraGauge A Pillar Mount UltraGauge A Pillar Mount
In stock
UltraGauge Combination Mount UltraGauge Combination Mount
In stock
UltraGauge MX 1.4 - 2021 Toyota Landcruiser 200 Series UltraGauge MX 1.4 - 2021 Toyota Landcruiser 200 Series
In stock
UltraGauge Vertical Mount UltraGauge Vertical Mount
In stock
UltraGauge Windscreen Mount UltraGauge Windscreen Mount
In stock


  • Supports most 1996 and newer OBDII compliant vehicles
  • Supports more than 78 selectable Gauges
  • Real time and long term kilometre gauges
  • Distance-To-Empty and Time-to-Empty gauges
  • Auto-Page advance, cycles through gauge pages
  • Configurable low and high alarms for every gauge
  • Audible and Visual Alarms
  • Alarms may be individually suspended
  • Displays both current and pending trouble codes
  • Clear Check Engine Light and Trouble Codes
  • Current and pending Trouble Code Alarms
  • Automatic fuel fill-up detection
  • Oil change and Service Gauges
  • Trip Gauges
  • Speed calibration for tyre, wheel, transmission, and/or differential changes
  • Health indicator
  • Internal temperature sensor that can be monitored and alarmed
  • Fuel mixture closed and open loop indicator.
  • Large LCD Display
  • Display Brightness adjusts automatically to ambient light; automatic night driving
  • Lightweight easy to route OBD II cable
  • Compact and minimally intrusive
  • Low power consumption
  • Retains configuration and accumulated data across power cycles
  • Automatically detects and turns off display when vehicle ignition off.
  • Comprehensive menu system
  • Comprehensive detailed user manual (online not hardcopy)
  • Please note, this gauge is supplied with the rear mount adapting bracket only, it is not supplied with a horizontal, vertical or windscreen mount. A selection of mounting options are available for purchase through our website and need to be purchased separately. We can combine shipping of the gauge and mount.

The Ultragauge MX 1.4 has all the features as described on EM Plus, except that the MX 1.4 has the added ability to access non-standard manufacturer specific gauges, such as transmission temperature (if supported by the vehicle, ECU and OBD protocols).

The Ultragauge MX 1.4 is only recommended for advanced users that are comfortable with technology and are familiar with the concept of OBDII codes.

The UltraGauge MX is provided pre-programmed with 8 common manufacturer parameters for various vehicles. There is no guarantee that all the pre-programmed parameters will work with your year, make and model vehicle. Those that are not supported by your vehicle will show “Err:



Your UltraGauge MX 1.4 will come pre-programmed with transmission temperatures as stated above yet other available gauges in the gauge list will need to be assigned, by you, to the page where you would like them displayed.

We can offer full customisation of your gauge, configured for you out of the box. If you don't want to assign gauges to varying pages, setup alarms etc we can do it for you! If you do chose this option which is available upon purchase please email info@preciseauto.com.au with your specific gauge display requirements:

- In the email please detail your name, contact number and invoice number

- Please detail what gauges you would like on what page (7 pages with up to 8 gauges per page available)

- What alarms you would like set and at what parameter (for example - coolant temp alarm set at 95 degrees)

- Any other specific requirements you may have, or questions related to customising your gauge



  • This variant is pre programmed for the Toyota vehicles listed and will read transmission temperatures.
  • The pre and post 2016 and 2021 LC200 unit comes pre prorgrammed with Pan and Torque converter temperature, gear position and torque converter lockup status gauges.
  • The UltraGauge will not read vehicle fuel senders and requires end user input to enable accurate fuel reading for trip gauges
  • If you have had an engine or transmission remap, or a torque converter lock-up kit installed this may effect ability of the gauge to read certain parameters. The gauge looks to find factory PIDs/parameters, if it is unable to see these PIDs/parameters the gauge will default to a display output of 'ERR'. If you have any concerns or questions on this please send tech support an email on kristian@preciseauto.com.au or call on 0413598578

Programming Task Card - Our Blog UltraGauge MX - M Gauge Programming Guide (preciseauto.com.au)

Coding (under Toyota Heading) - Products Stockists UltraGauge M Gauge Support - Retail (preciseauto.com.au)


Please read prior to purchasing: http://www.preciseauto.com.au/blog/our-blog/ultragauge-mx1.3-pre-purchase-reading/


SKU 631
Shipping Weight 0.2000kg
Shipping Width 0.020m
Shipping Height 0.015m
Shipping Length 0.015m
Shipping Cubic 0.000004000m3
